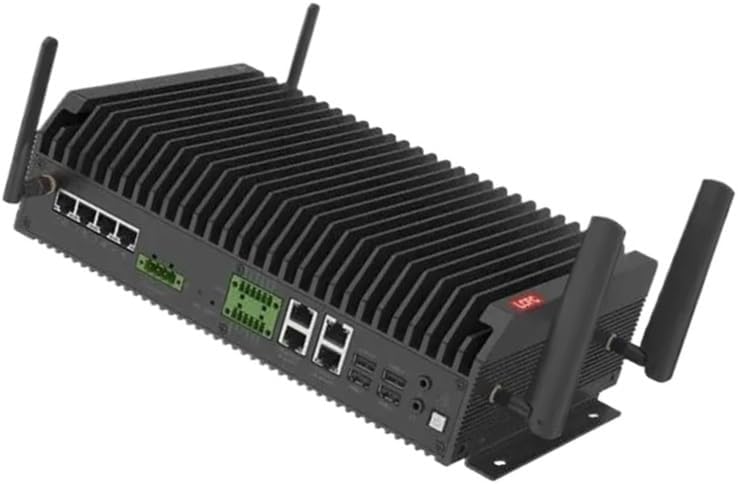

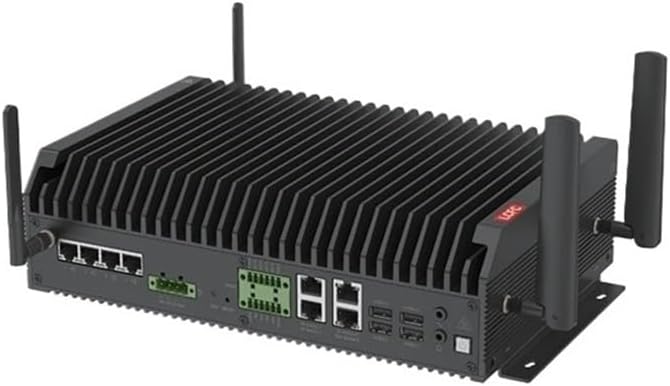

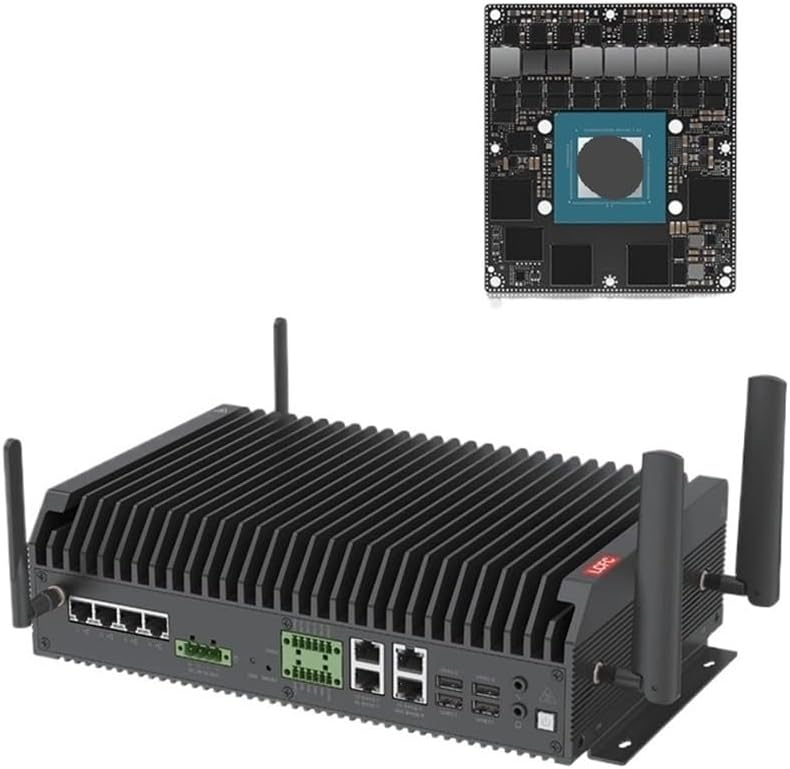

64GB 275Tops Embedded DC Fit For 12-36V Drones

32GB
64GB
200 TOPS (32GB)
275 TOPS (64GB)
GPU
1792-core NVIDIA Ampere architecture GPU with 56 Tensor Cores (32GB)
2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores (64GB)
CPU
8-core Arm Cortex-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 (32GB)
12-core Arm Cortex-A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 (64GB)
DL Accelerator
2x NVDLA V2
Vision Accelerator:
1x PVA V2
Memory
32GB 256-bit LPDDR5, 204.8 GB/s (32GB)
64GB 256-bit LPDDR5, 204.8 GB/s (64GB)
Storage
64GB eMMC 5.1
Video Encode
1x 4K60 (H.265), 3x 4K30 (H.265), 6x 1080p60 (H.265), 12x 1080p30 (H.265) (32GB)
2x 4K60 (H.265), 4x 4K30 (H.265), 8x 1080p60 (H.265), 16x 1080p30 (H.265) (64GB)
Video Decode
1x 8K30 (H.265), 2x 4K60 (H.265), 4x 4K30 (H.265), 9x 1080p60 (H.265), 18x 1080p30 (H.265) (32GB)
1x 8K30 (H.265), 3x 4K60 (H.265), 7x 4K30 (H.265), 11x 1080p60 (H.265), 22x 1080p30 (H.265) (64GB)
I/O Configuration
Gigabit Ethernet *2(optional 4) HD-MI *1
RS232/422/485 *2(DB9) USB 3.1 *2
CAN *2 (DB9) Type C*1
GPIO *8 USB 2.0 *2
MIC-in *1 Line-out *1
User Expansion
M.2 Key E 2230 *1 fit for WiFi/Bluetooth M.2 Key E *1 fit for LTE / 5G SI-M Socket *1
M.2 Key M 2280 x1 fit for NVME SSD SATA*2 PCIEX16 SLOT*1
Function Key
Power Button x1
Recovery Button x1
Power *1
Programming *2
Power
12-36V DC
Size
226mm×70mm×144mm

IP50
Operating Temperature
-2060°C CPU/GPU(Full-load);
-20°75°(Load-Down);
Storage Temperature
-40-70
Humidity
5-95%@40°,non-condensing
Certificates
CCC/ROSH/SRRC/CE/FCC
GX 32G AI Edge Computer Fanless Industrial PC Embedded Computer 270 TOPS Fanless Edge AI Device EA-B600
Description :
Model Number : B600
Power Supply : DC 12-36V
Processor : 64G
AI Per fit formance : 275TOPS
CPU : 8-core Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
GPU : 1792-core Ampere GPU with 56 Tensor Cores
Memory : 16GB 128-bit LPDDR5 DRAM
Storage : 64GB eMMC 5.1
Product: 1 piece
