Arcade Buttons EG STARTS 100mm Big Dome Convex Type LED Lit Illuminated Push Button for Arcade Machine Video Games Parts & Red DC 12V

Choose from Colors:

Red, Yellow, Blue, Green and White

Brand Name: EG STARTS

Model Number: EG-100mm

Support model: Coin Operated

Games Size: 100mm

Weight: 0.205 Kg

Press the life: 1 million times

Material: PVC transparent material ABS material

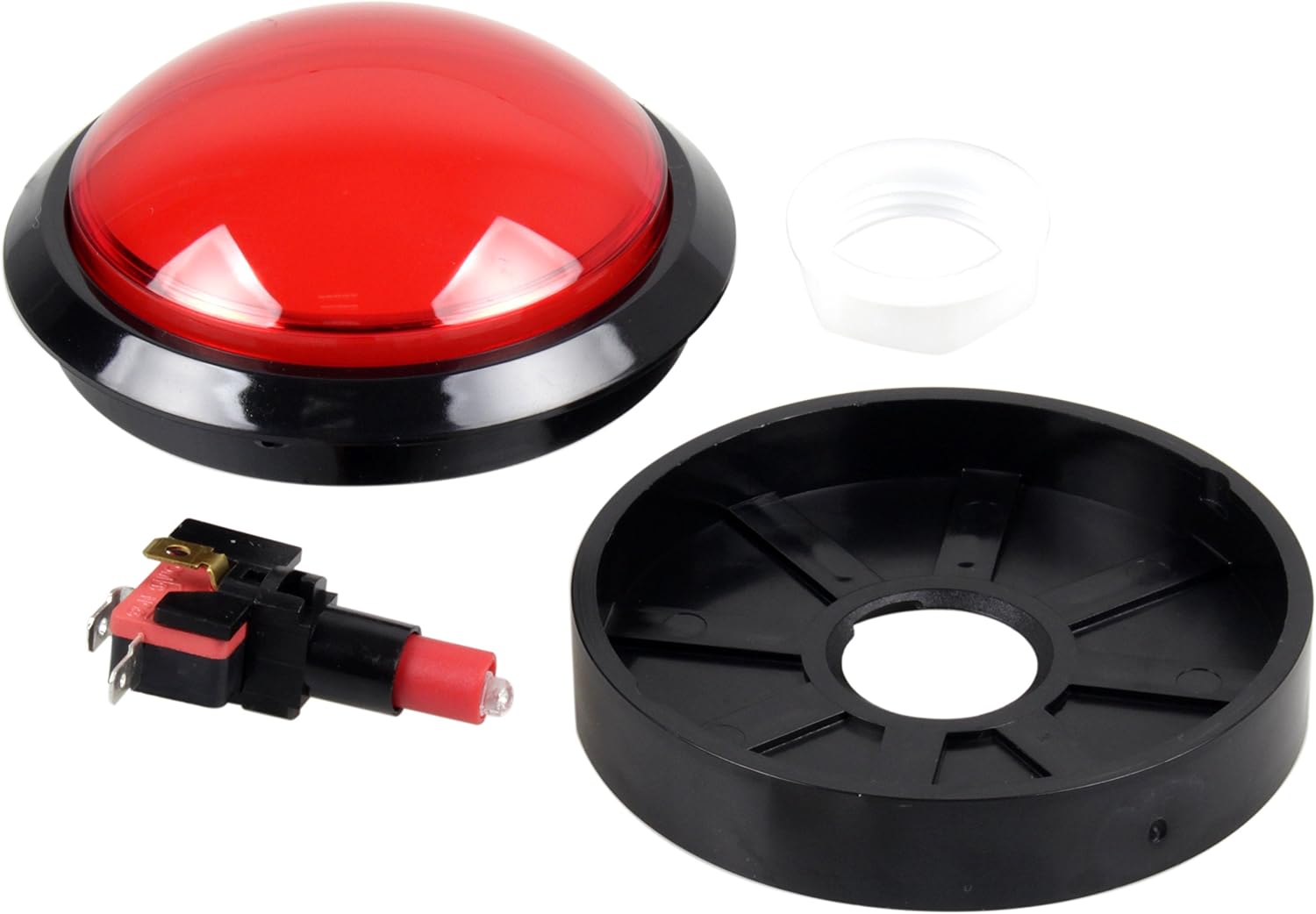

Packing Includes:

1 x 100mm button ( The color of your choice )

1 x Button in the bracket

1 x LED ( with the color of the buttons )

1 x Made China Micro switch

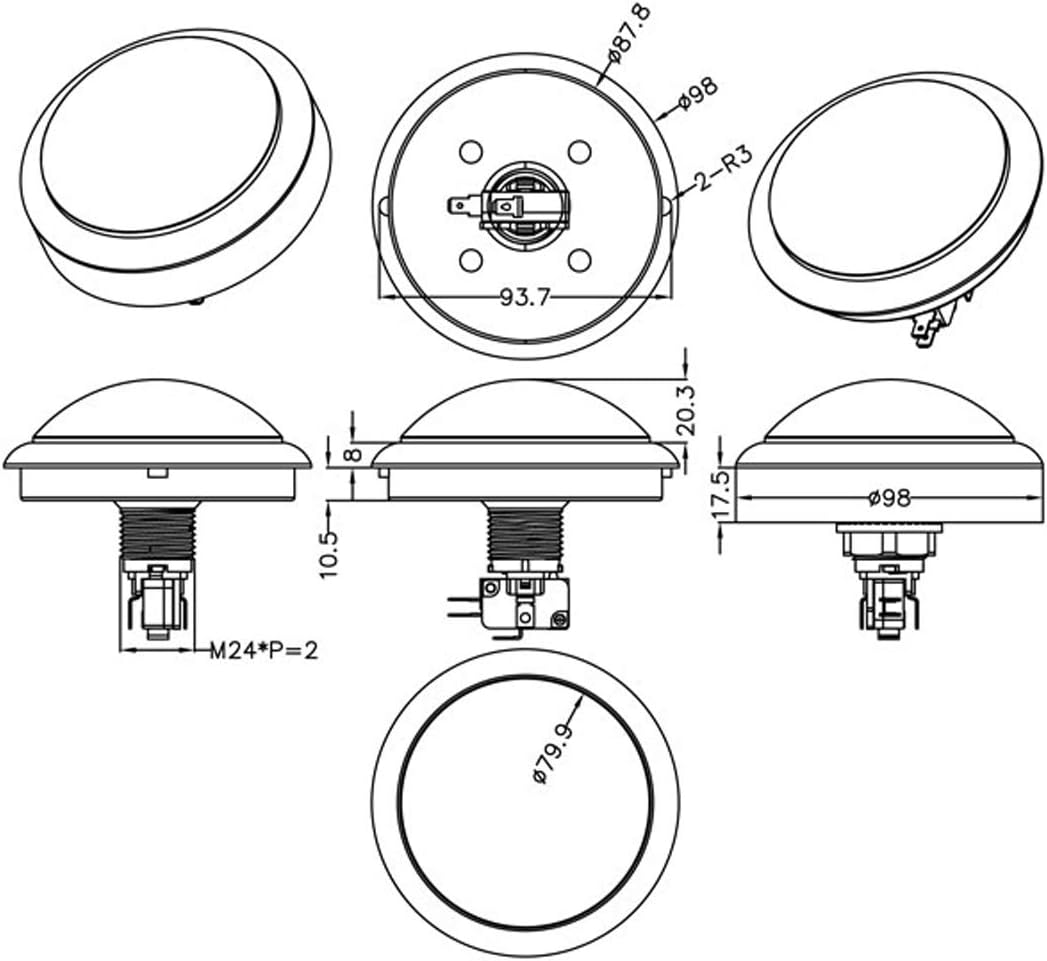

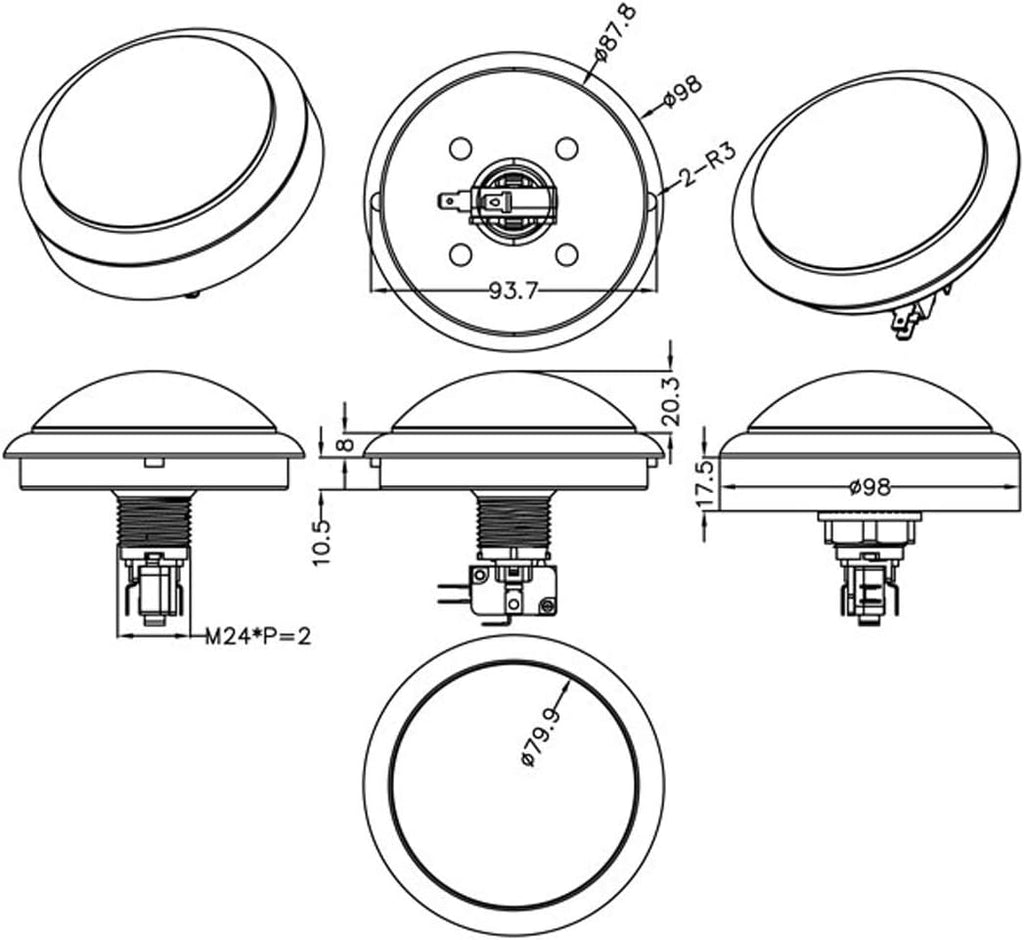

Product Dimensions:

* Mounting hole required: 24mm or 88mm

* Overall diameter of button across plunger: 100mm

* Maximum depth of button from top of plunger to bottom of microswitch: 95mm

Wiring Information:

These buttons require 4.8mm crimped wires for connection. 1 wire for ground connection (CO) and 1 wire for signal connection (NO).

These buttons require 6.3mm crimped wires for illuminating. 1 wire for the positive connection and 1 wire for the negative connection (if the LED does not work. Please exchange LED lights interface. )
