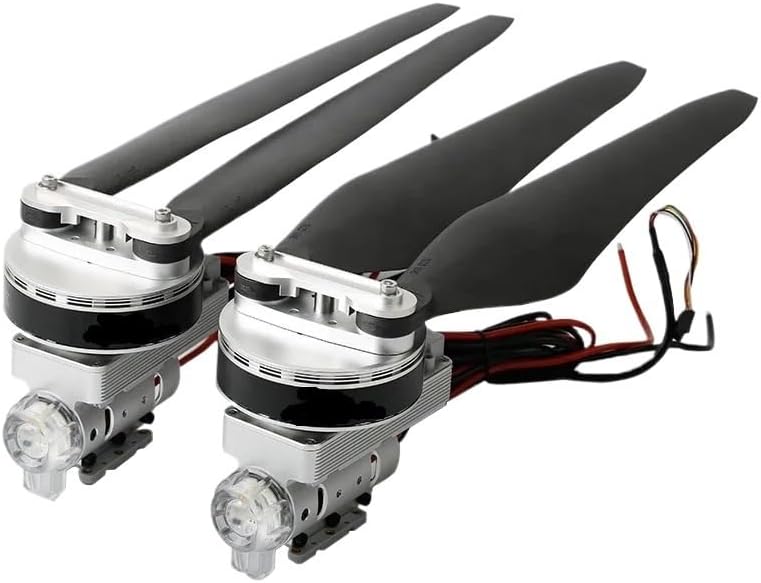

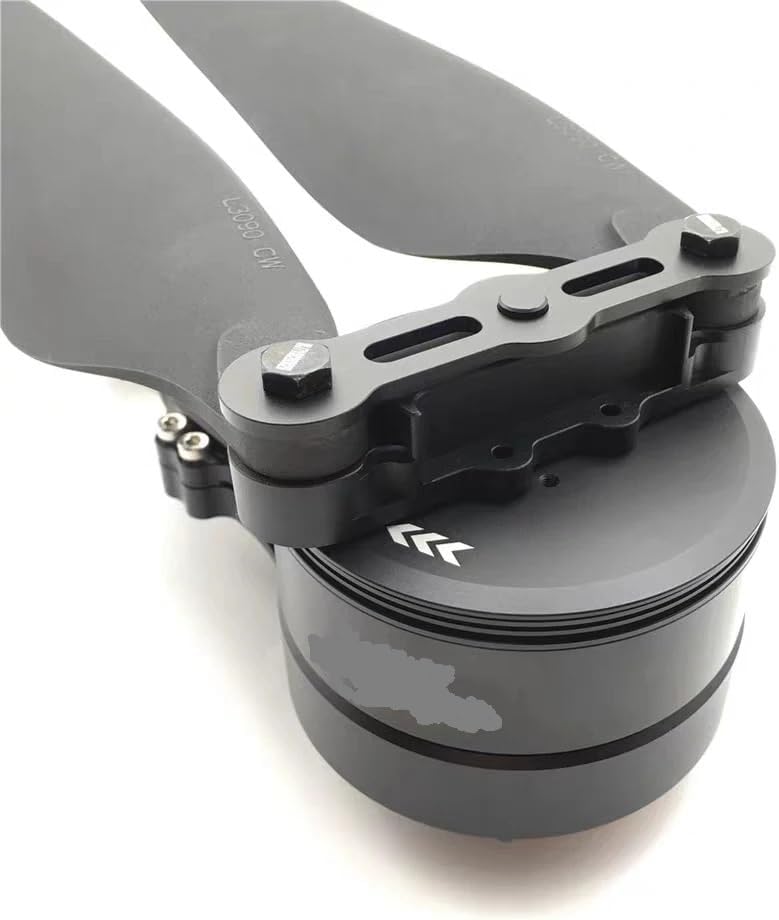

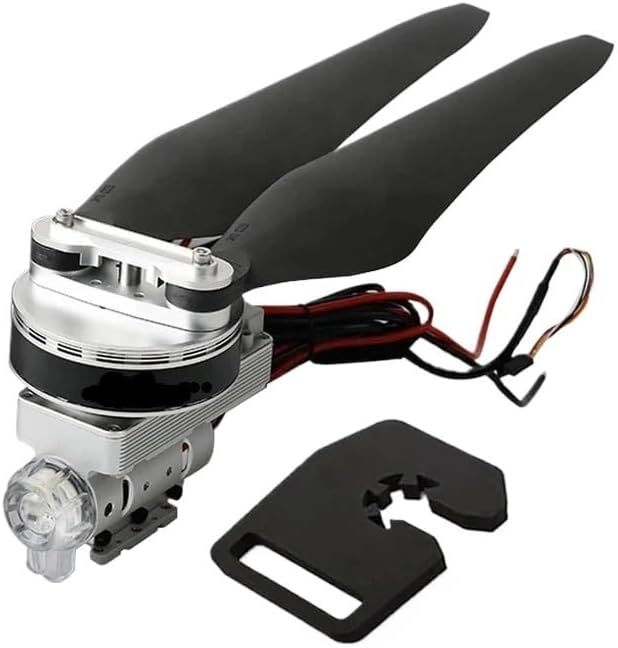

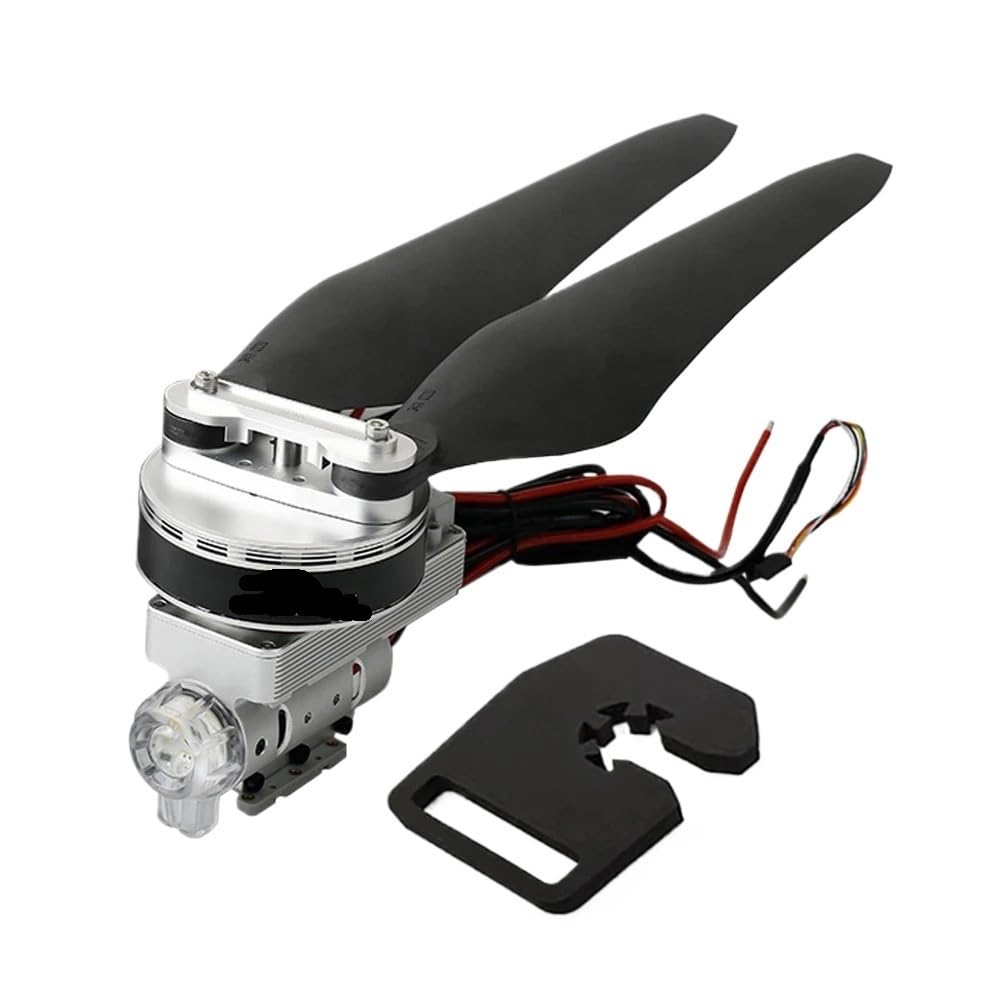

Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)

Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)

Pink
$895.64
$895.64 $895.64
Skip to product information
Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
  • Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)
Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)

Compatible For Hobbywing X9 9616 110KV Power System With ESC Propeller 10L 16L 22L Agricultural Drone(Pink)

$895.64
$895.64 $895.64
Color

Maximum pulling force: 21.5KG/axis
Recommended battery: 12S lipo
Recommended takeoff weight (single axis): 7.0-9.5KG
Weight (including propeller) 1450g
Dimensions: 151.2x133.3mm
Motor
Stator size: 96x16mm
KV value: 110rpm/V
Internal resistance: 0.031BE
Maximum current: 100A
Motor outer diameter: 103.5mm
Paddle clamp installation size: 25mm-4xM3; 31mm-4xM3
Bearing: imported ball bearing (waterproof)
Applicable carbon tube outer diameter: 40mm
ESC
Model: X-rotor/120A-FOC
Battery: 12-14Slipo
PWM input signal level: 3.3V/5V
Working pulse width: 1100s-1940s (curing, calibration is not supported)
allowable voltage: 52.2V
allowable current (continuous): 120A
allowable peak current (3 seconds): 150A
BEC: none
propeller:
Diameter / pitch: 34x11 inch
==========
Nominal Voltage : Other
High-concerned chemical : None
Package : Yes
Weight : 1890.99
Battery Type : Others
Drones Accessories Type : Digital Battery
Quantity : 1 pcs
Size : X9 Plus
Model Number : X9 Plus
Tool Supplies : X9 Plus
Remote Control Peripherals/Devices : Motor
RC Parts & Accs : Motors
Use : Vehicles & Remote Control Toys
Wheelbase : Bottom Plate
Technical parameters : Value 2
For Vehicle Type : Airplanes
Four-wheel Drive Attributes : Motors
Upgrade Parts/Accessories : X9 Plus
Material : Metal

  • Delivers robust power and high torque output, efficiently engineered for heavy-lift agricultural drone applications and demanding flight conditions.
  • Integrated system design includes a matching electronic speed controller and propeller for optimized performance and simplified installation.
  • Low KV motor rating provides exceptional torque and control at lower RPMs, ideal for carrying large payloads like spraying systems.
  • Supports a wide voltage range for flexible battery configuration, allowing for extended flight times during field operations.
  • Built with durability in mind to withstand the rigors of frequent agricultural use, promoting reliable operation crop monitoring and spraying tasks.
