Fosiya LED Arcade Joystick Buttons Kit Ellipse Oval Style 8 Ways Joyst

Fosiya LED Arcade Joystick Buttons Kit Ellipse Oval Style 8 Ways Joystick + 20 x LED Arcade Buttons for 2 Player Video Games Standard Controllers All Windows PC MAME Raspberry Pi (Mix Colors Kits)

Red + Blue Kits

$42.88

$42.88 $42.88

Fosiya LED Arcade Joystick Buttons Kit Ellipse Oval Style 8 Ways Joystick + 20 x LED Arcade Buttons for 2 Player Video Games Standard Controllers All Windows PC MAME Raspberry Pi (Mix Colors Kits)

$42.88

$42.88 $42.88

Product Description

1.Each Encoder have its own USB Cable to make sure that Multiplayer can play the games in the same condition!

2.The Joystick is a square 8 way professional joystick!

3.The buttons are 5V LED Illuminated push buttons with build-in Blue switch inside.

4.The buttons default as lighted all the time.

5.Joystick hole diameter: 24mm, large button hole diameter: 28-30mm

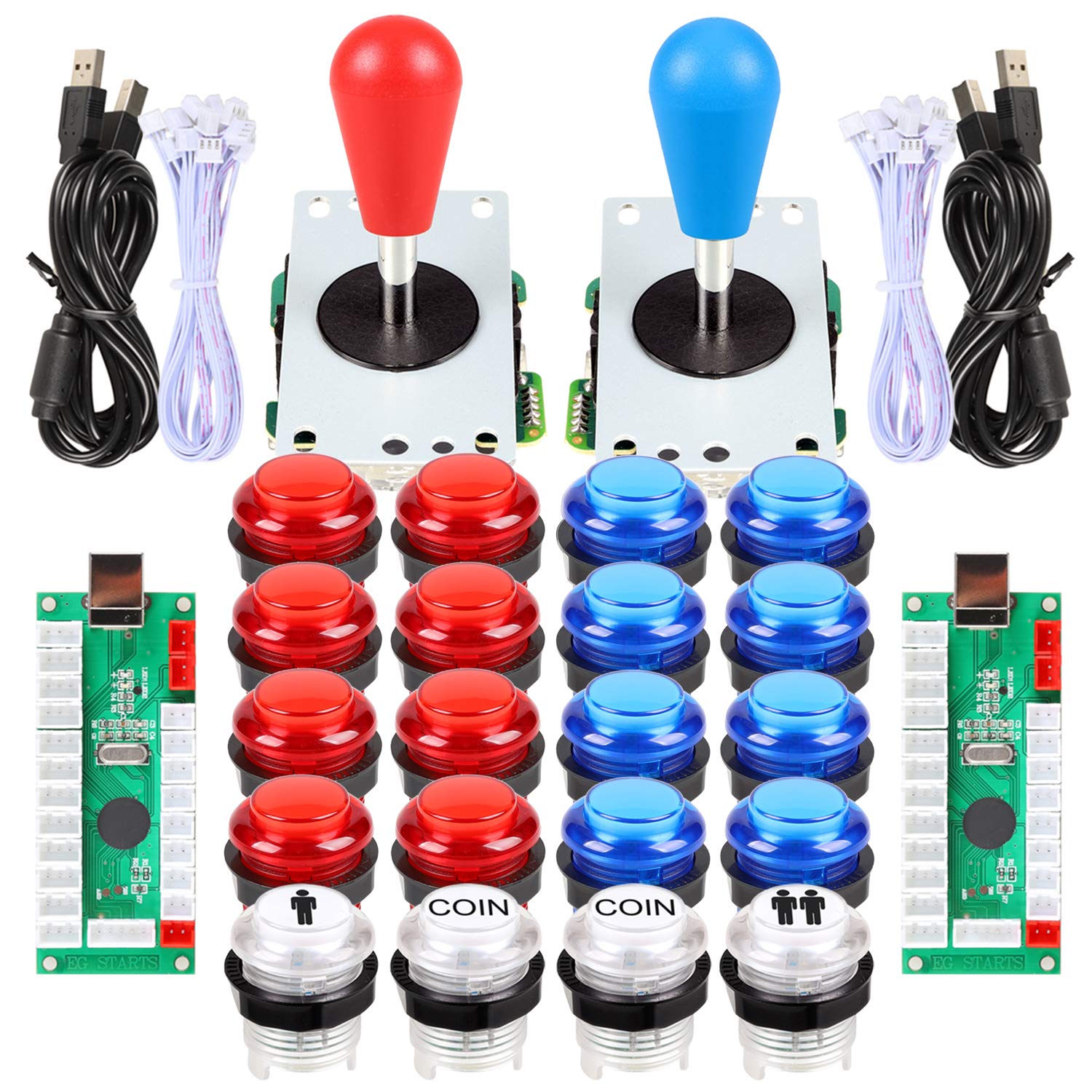

Package Included

2x Zero Delay LED USB Encoder

2x USB Cable

2x 5Pin wires for Joystick

20x 3Pin wires for LED Push Buttons

4x 30mm Ring-Fixing LED White Push Buttons as start buttons (1 Player + 2 Player + 2x Coin)

16x 30mm Ring-Fixing LED Push Buttons as fight buttons

2x 5Pin Square 8 way joystick

1x Install Description

Tips for installation

1. Plese read our user manual before starting your diy actions.

2. It's very important! Connect Joystick's 5Pin cable to the 5Pin slot that opposite the USB-B terminal. A lot people connect the joystick to the wrong 5Pin slot.

3. There is no need separate the button's functions when you connect wire to push buttons and encoder board exept you want add " Auto-Fire", " Tubro", "Clear" & " Mode" Functions.All the fight button functions can be set in MAME or RetroPie. "Auto-Fire", "Tubro","Clear" & "Mode" Functions have its own slot on the encoder board.

4. For Professional Players. We suggest your change all the buttons and joysticks into SANWA Brand or SEIMITSU Brand.

Tips for New User:

1. The item need work with MAME emulator. So before your build your own project, please download one to work with the parts.

2. If you use this kit to build your own Raspberry Pi Retropie Projects. Please search the steps before your DIY.

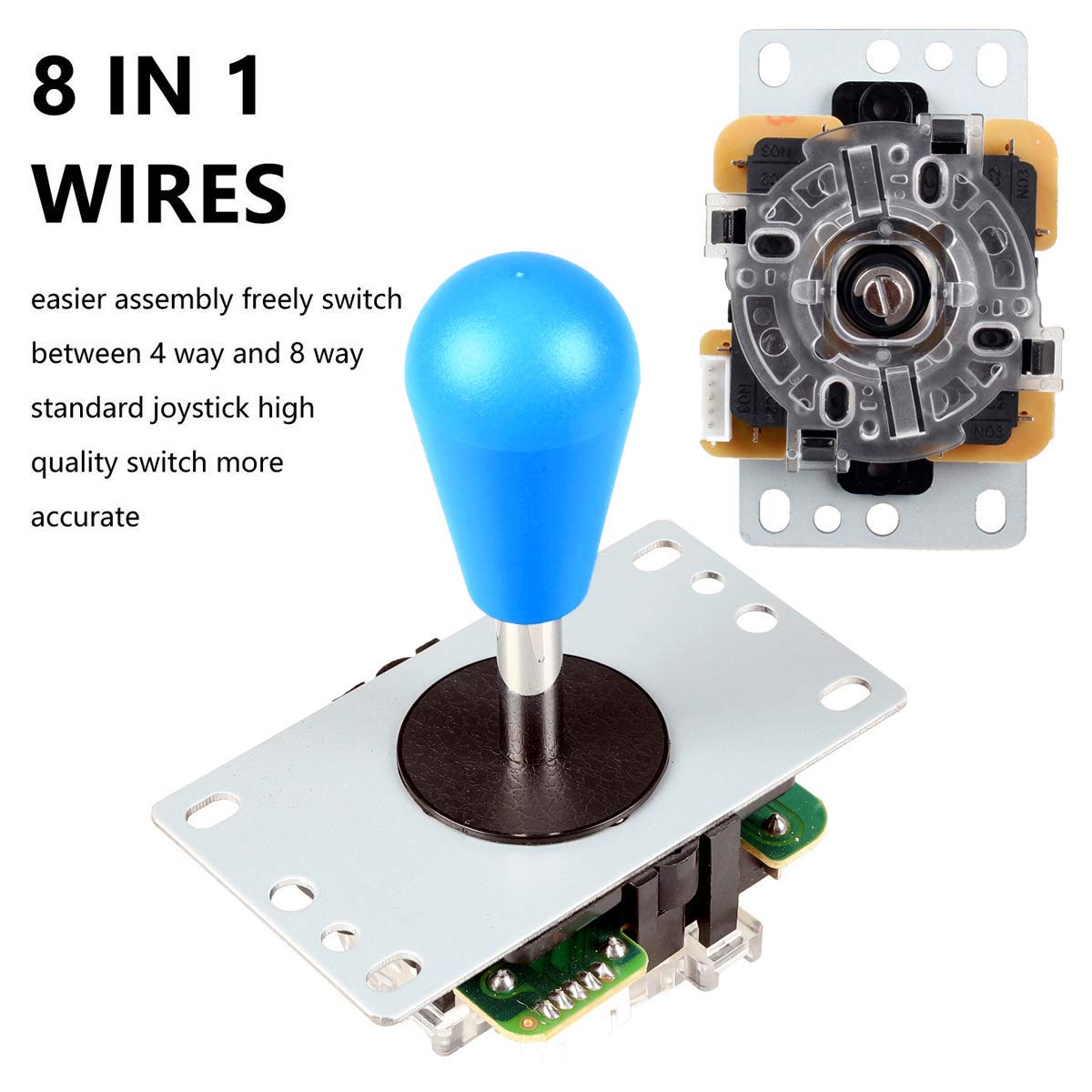

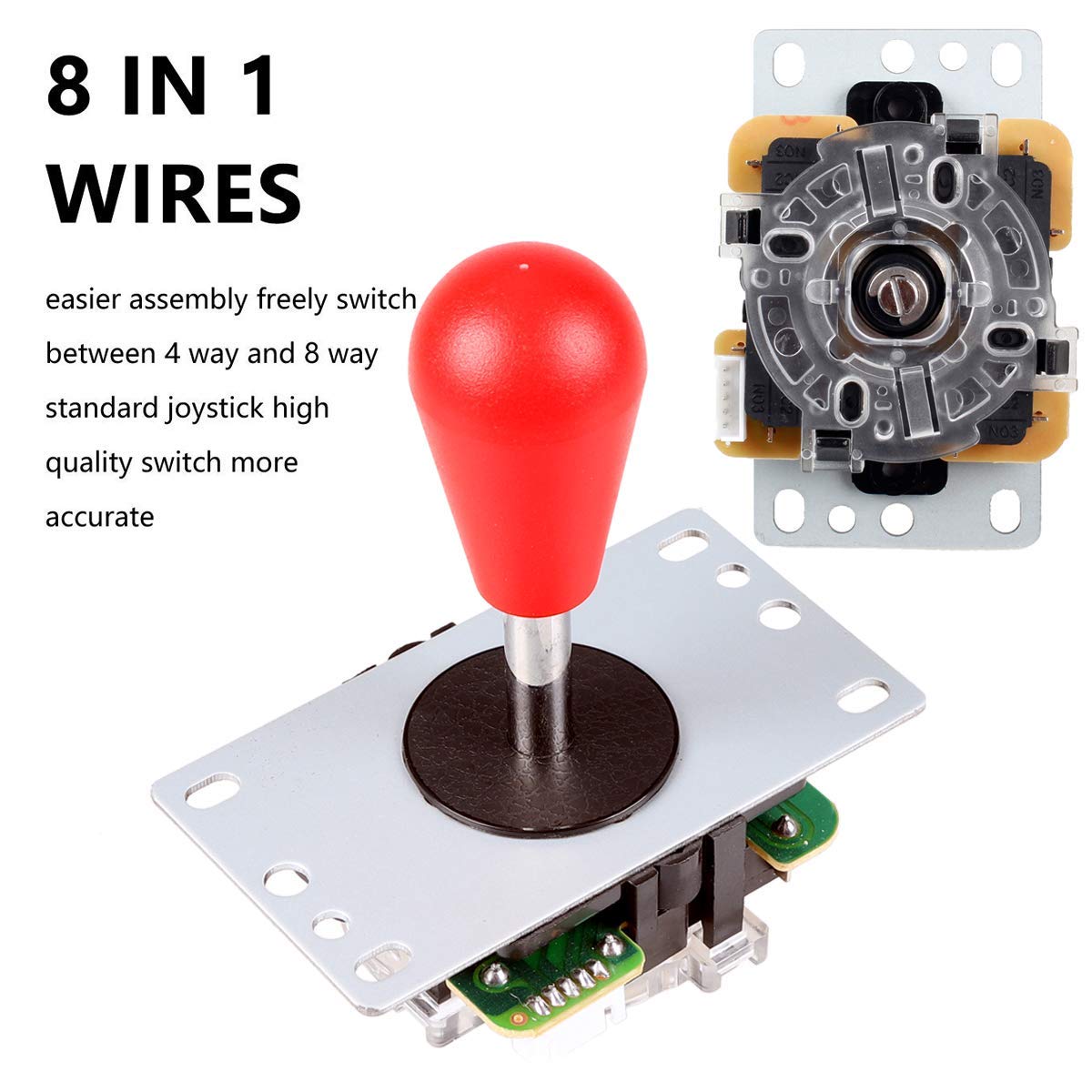

Arcade joystick

Can replace the different ball

It's hight quality 5Pin 8-ways joystick model. The service life reaches 1 million clicks.
New interface mode. Reject the wrong interface.

556

Joystick bottom

Applicable to the wooden shell and iron shell machine,
The return of flexible, more wear-resistant; Iron base parallel cone; square gate

7878

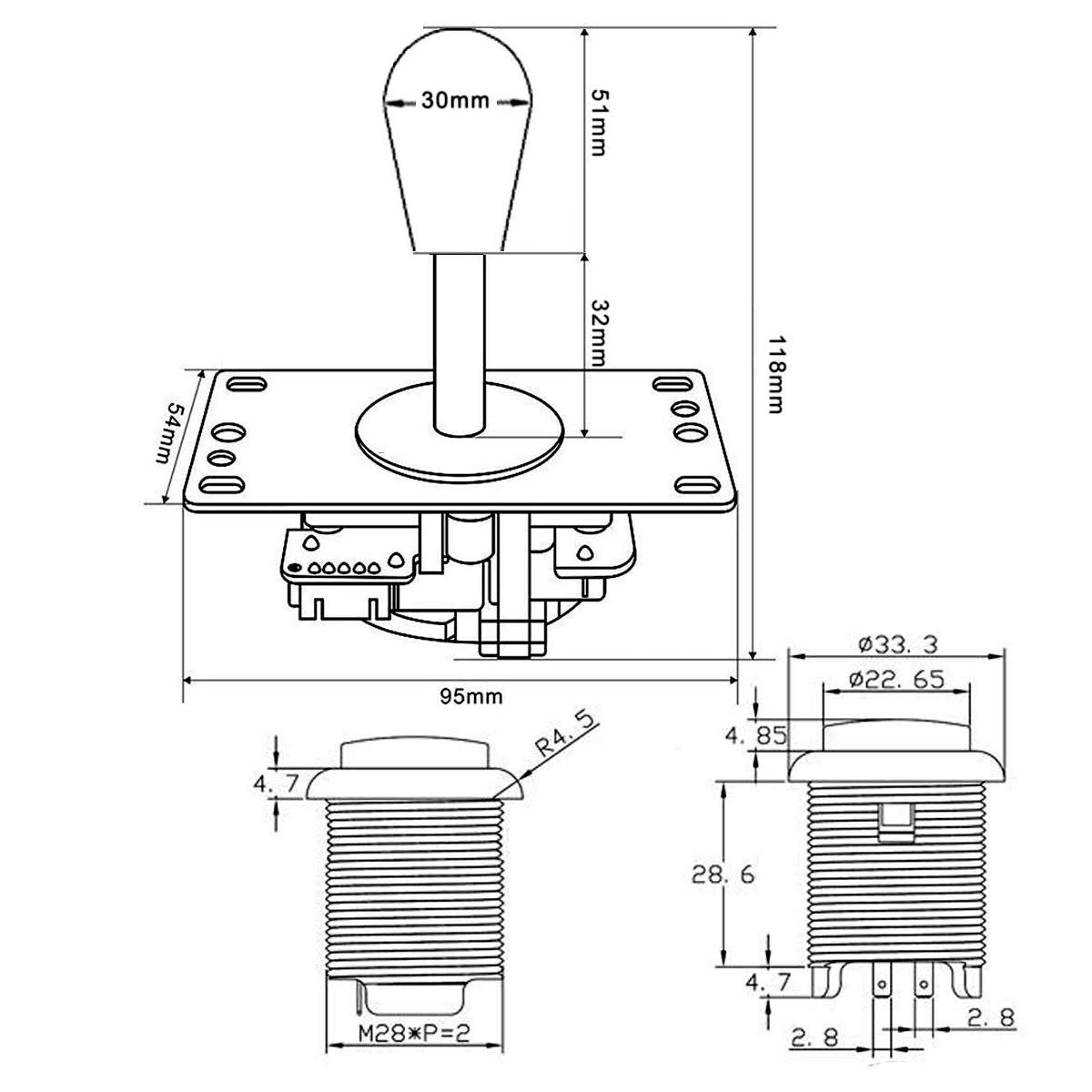

Specification map

All the silver conduction point, contact sensitive; within the iron bar for the stainless steel;
2.0 thickness of the electrolytic plate; dust washers; ball detachable, can replace the different ball;

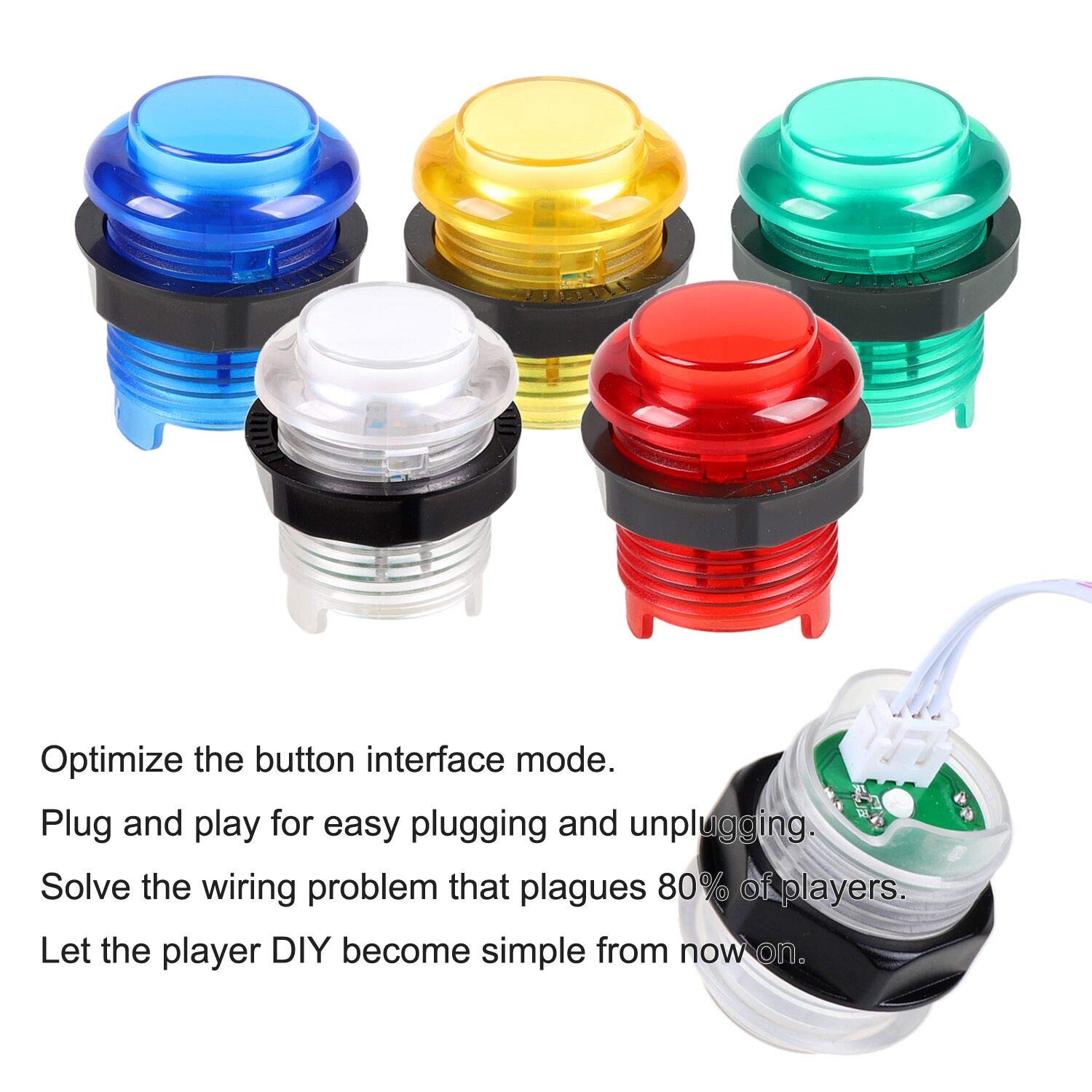

LED Arcade Push Buttons

75745

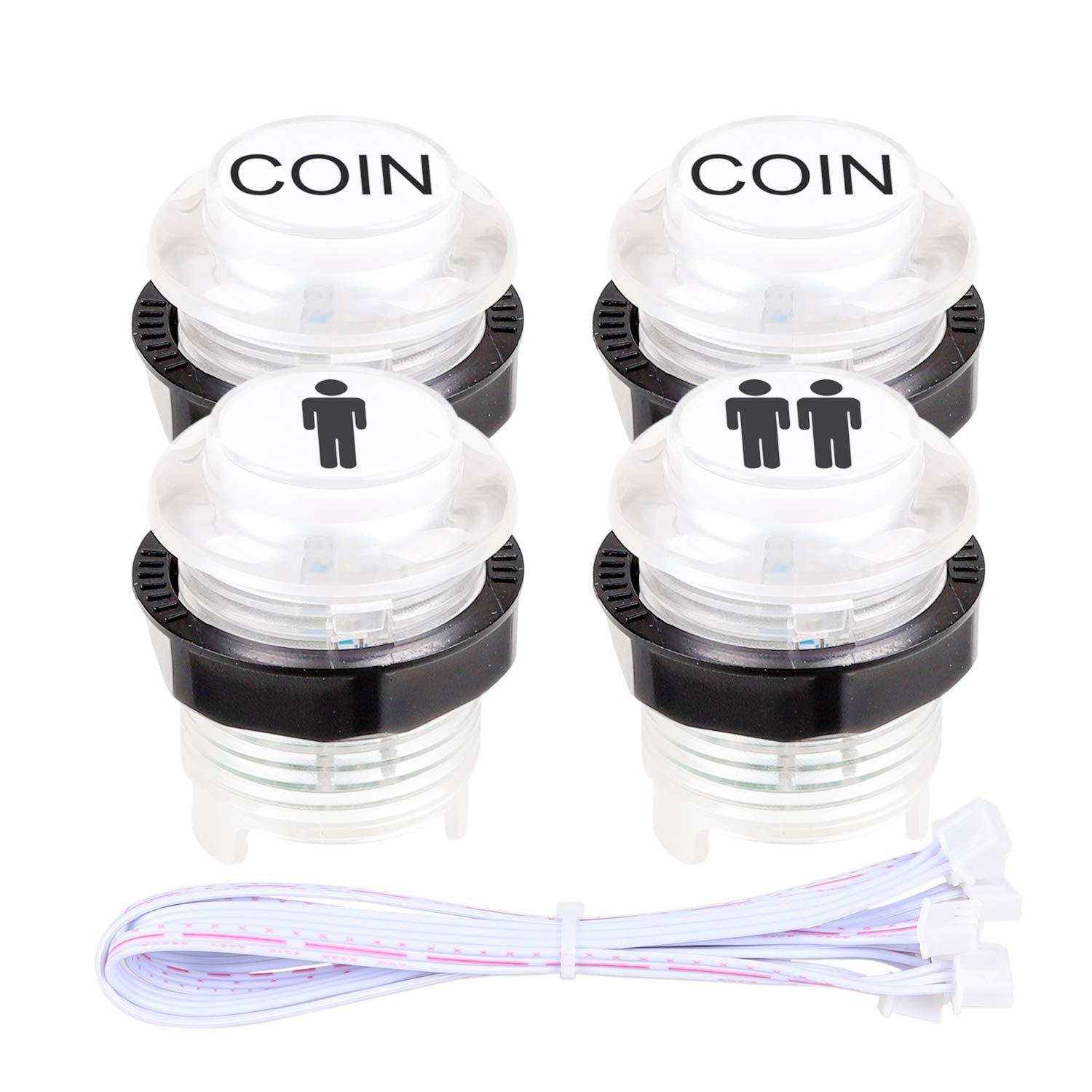

1 Player 2 Player + 2x Coin Buttons

Individually independent stickers.
Buttons can be opened separately to add brand LOGO. Create your own style.
Each button has 2 switch interfaces and 2 LED light connectors.
Plucked gold-plated, gold-plated contacts, micro-sound, long life, test life of up to 10 million times Use voltage: 5V

757

High quality full light LED Push Buttons

High quality material manufacturing
High temperature resistant plastic parts
HD translucent button body & cover
Rotary design
Comes with lighting effects, can be used for wood console, metal panels, with the use of various types of animation game

Professional fighting buttons
High quality light-transparent color powder is added to ABS material
Make the button more crystal clear. Brighter and more uniform

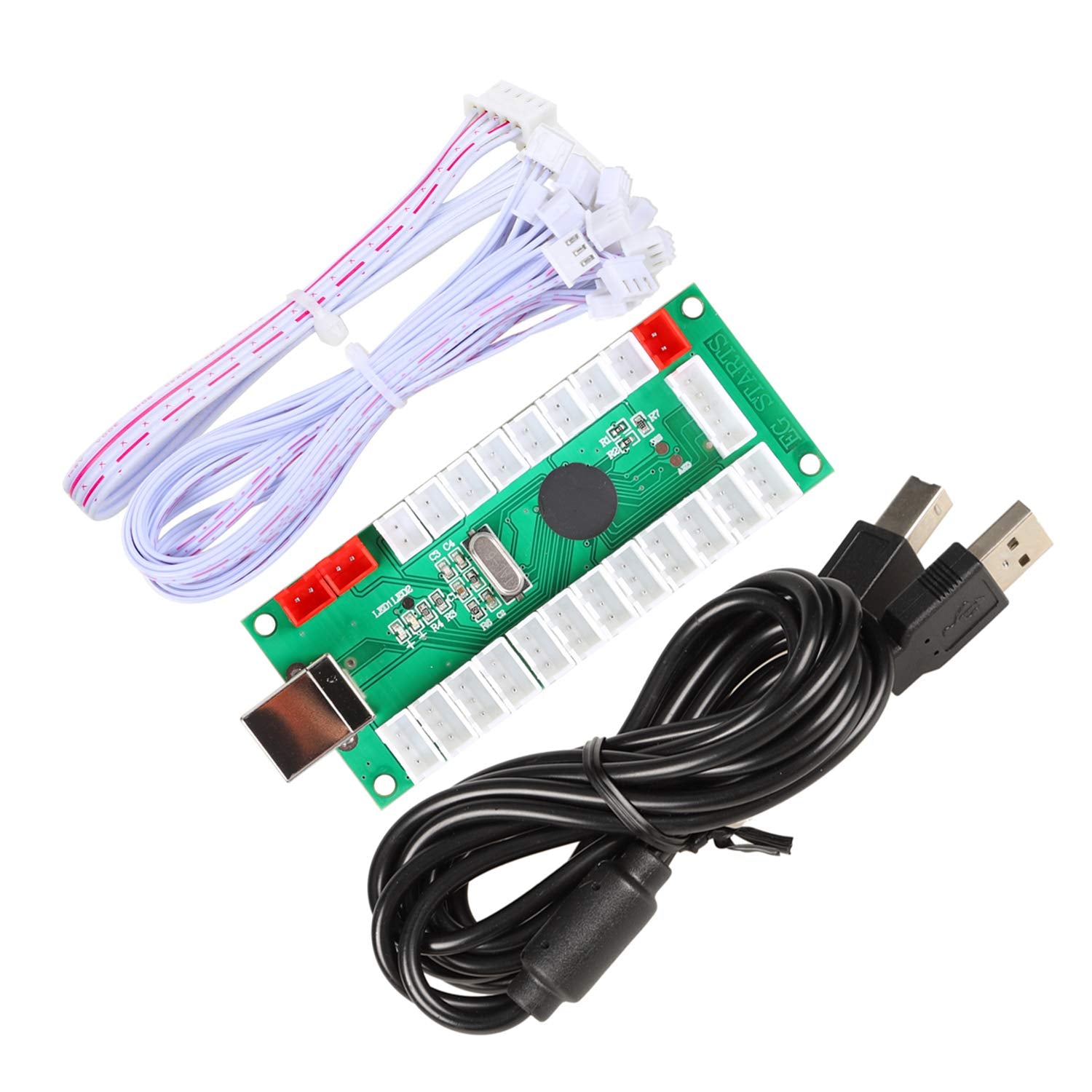

Arcade USB Controllers

USB Encoder

The USB Cable: 87Inch
The 5Pin Cable: 7.9 Inch
The Buttons Cable: 7.9 Inch
USB encoder imported SMD components. Work more smoothly. Longer life expectancy. Lower energy consumption.

Wiring method

The button is set to light all the time.
The maximum voltage is 5V.
Do not use more than 5V of voltage, otherwise it will burn the button !!

5757

PCB Board

USB Print Terminals
K1-K12 Push Buttons Terminals
5Pin Joystick Terminals
2Pin Joystick Terminals
Auto, Turbo, Clecet, Mode Terminals
6 and 6-1 is Output 5V Power Terminals

Quality: Excellent Control USB Encoder. High Quality Ellipse Oval Style 8 way joystick. LED Buttons Good lighting effects.
Perfect LED illuminated parts for 2 player Arcade MAME Jamma and other fighting game DIY Project!
Made with highest quality materials! Heat resistant plastic! Environmentally friendly metal!
Includes: 2 x 5Pin Arcade Joystick + 2 x USB Encoder + 20 x Larger LED Push Buttons (1 Player + 2 Player + 2x Coin button).
5V LED Illuminated push buttons with build-in Blue switch inside, excellent electronic performance, long life, reliability tested to 3,000,000 cycles!

› See more product details
