Low-Noise MEMS Inertial Measurement Unit Sensor ±400 DPS Gyroscope ±30g Accelerometer Suitable for Surveying and Mapping Drone Navigation
Low-Noise MEMS Inertial Measurement Unit Sensor ±400 DPS Gyroscope ±30g Accelerometer Suitable for Surveying and Mapping Drone Navigation
Origin : Mainland China
Series : HYXL-HH
Mounting Type : Screw flat, Surface mount
Model Number : HYXL-HH12
Type : Inertial Measurement Unit
Use : drone,UAV,robotics,vehicle,navigation,tracking
Theory : MEMS based,inertial measurement
Output : angular velocity,linear acceleration
Sensing Range : ±400dps,±30g
Power - Rated : 5VDC,low power
Voltage - Supply : +5V
Trigger Type : External
Axis : XYZ
Terminals : J30J-15ZKP,connector,pinout
Baud Rate : 921600bps
Gyro Bias (Full Temp) : ±0.01°/s
Angular Random Walk : 0.06°/h
Velocity Random Walk : 0.005m/s/h
Vibration Tolerance : 6.06g rms
Operating Temp Range : -40°C~+70°C

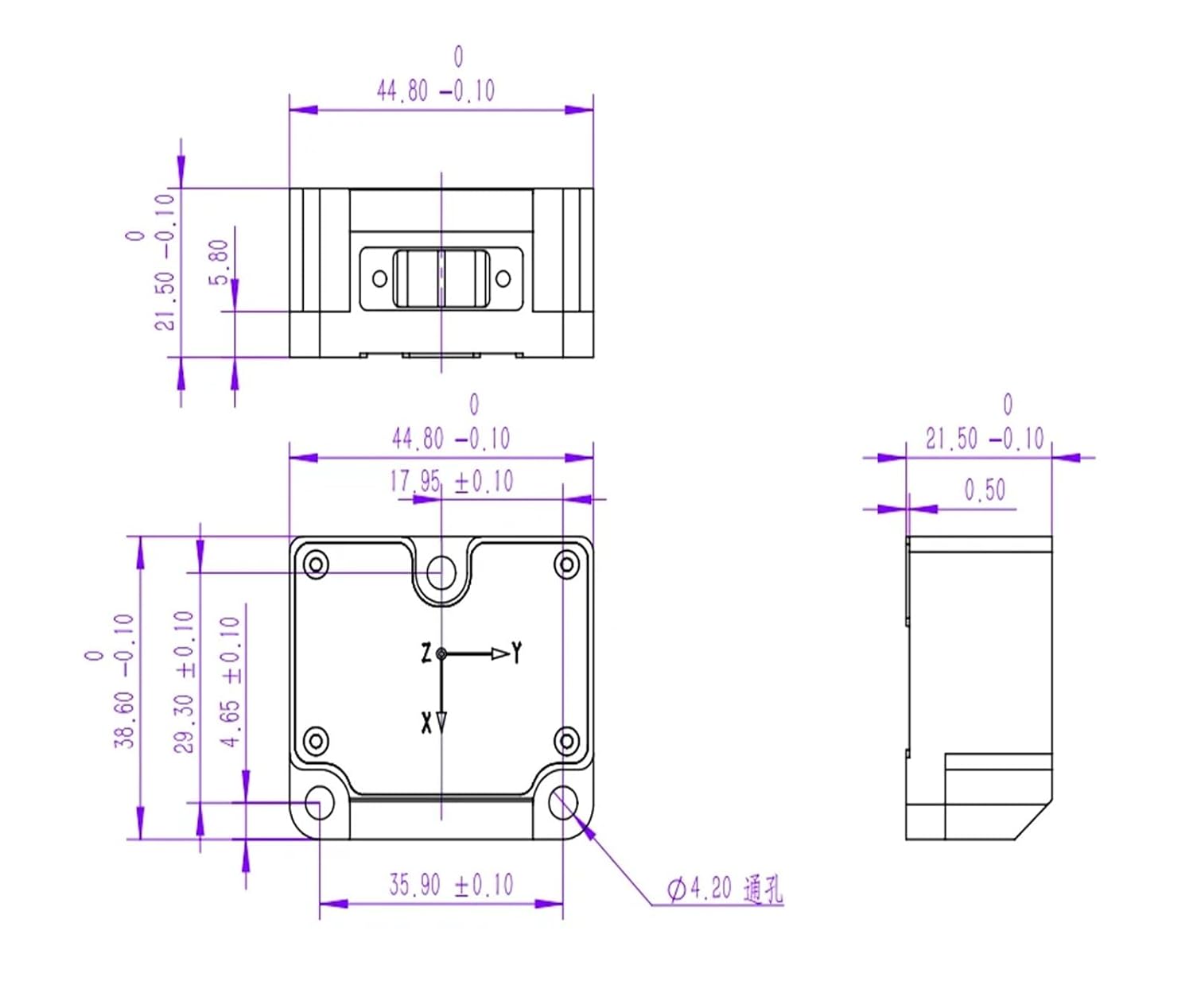

Dimensions : 44.8x38.6x21.5mm
- Precision Motion Sensing: Integrates multi-axis gyroscope and accelerometer technology to deliver accurate data in dynamic environments
- Advanced Technology: Delivers reliable performance for industrial applications with low power consumption
- Superior Calibration: Features full temperature compensation to ensure consistent measurement accuracy across operating conditions
- Industrial-Grade Durability: Withstands harsh environments, maintaining precision performance under shock, vibration, and wide temperature variations to meet demanding applications
| Brand | ZHZKPLPPRB |
| Number of Items | 1 |
| Manufacturer | ZHZKPLPPRB |
