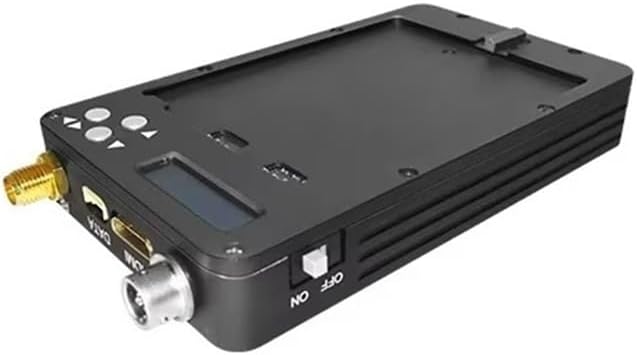

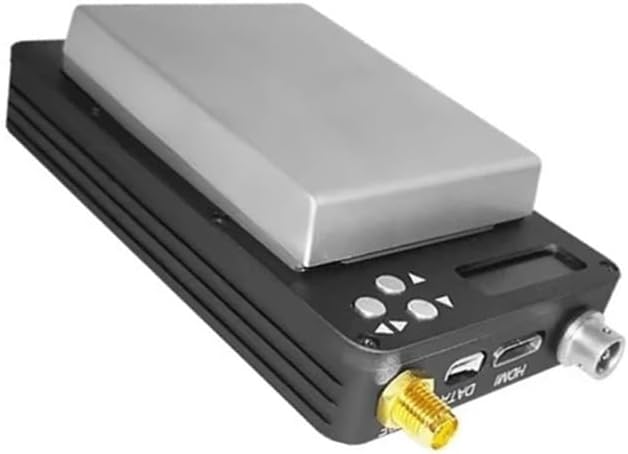

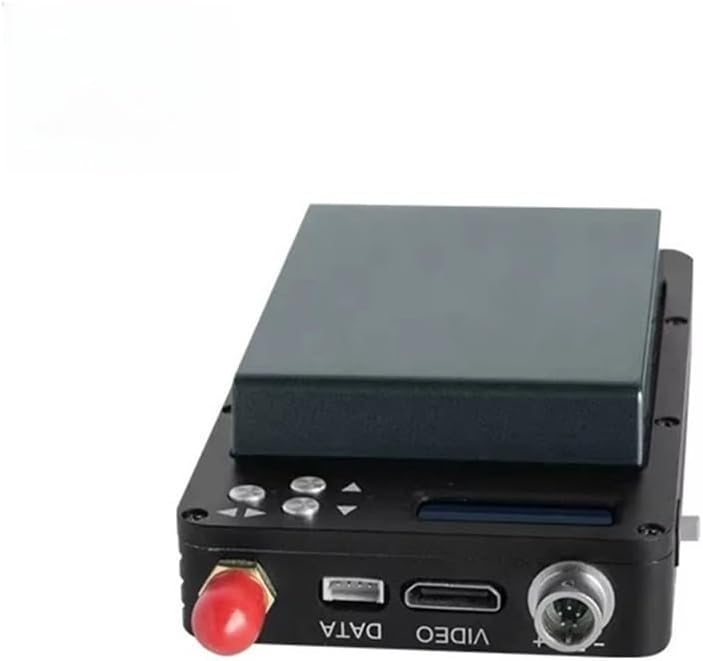

Portable and Receivers 10-20km Fit For Drone

DC7.2V(7.2V/1400mAstandard matching )
Current
1A
AV Input
AV:3.5mm port,connect to standard resolution analog video
:2.5mm port,connect to HD
HD-SDI/HD-:supportHD1080P,720P,576,480; with audio demultiplexing function
working time
1 hour
Frequency
300-900MHz(option)
Bandwidth
2/2.5/4/8MHz(adjustable)
Output power
30dBm (1Watt)
Data encryption
AES128/256bits
Modulation
COFDM
Constellation
QPSK16QAM
Carrier
2K,8K
Flatness
Full band2dB8MHz0.5dB
FEC
1/22/33/47/8
Guard Interval
1/321/161/81/4
Type
SG-HDS1000A portable audio and receivers 10-20km Drone
Video Compression
H.264
Image resolution
HD1080i/P(1920*1080), compatibility 1080I,720P,480P and standard resolution
Parameter method
Set up the related parameters through the panel
58
Sloping field SNRnweightedB
50
SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
R-F Interface
S.MA
Video fit formats
PAL/NTSC(self-adaption)
Working temperature
-20+75
Dimension
100*59*22mm
Weight
195githout
288g(with )
Paired Receiver
Specification of mathed cofdm video audio receiver
Frequency
300-900MHz,1.2G/2.4G/4.4GHz
Receiving sensitivity
-102dBm @ /4MHz
-95dBm @ /8MHz
BER
BER1×10-4
RF interface
N(type)ual diversity reception technology
Constellation
QPSK,16QAM
Carrier
2K,8K
Video fit formats and amplitude
PAL/NTSC 1Vp-p/75
Voltage
AC220V±20V, DC14V~DC16V
Current
1A@DC12V
Modulation
COFDM
Encryption
AES128
AV Interface
BNC
FEC
1/22/33/47/8
Guard Interval
1/321/161/81/4
Revolution
HD-MI/SDI: HD1080, 720P, 576, 480
Video output
Composite video RCAD, HD-SDI lternative
Audio Output
Analog stereo left and right channels
Video channel characteristic
Differential gain DG1.5%
Differential phase DP1°
Work environment
-30~70
Weight
3.5KG
Size
440*340*65mm
Model Number : SFGT-HDS1000A
Frequency : 300-900MHz(option)
Bandwidth : 2/2.5/4/8MHz(adjustable)
Modulation : COFDM
Video Compression : H.264
R-F Interface : SM.A
Dimension : 100*59*22mm
Weight : 195g(without )
Product: 1 piece
