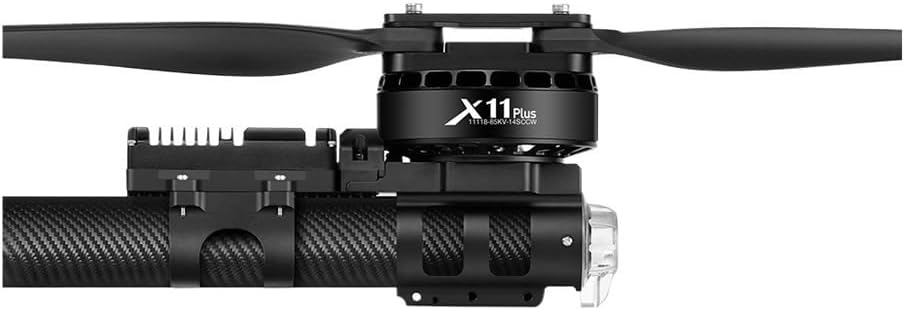

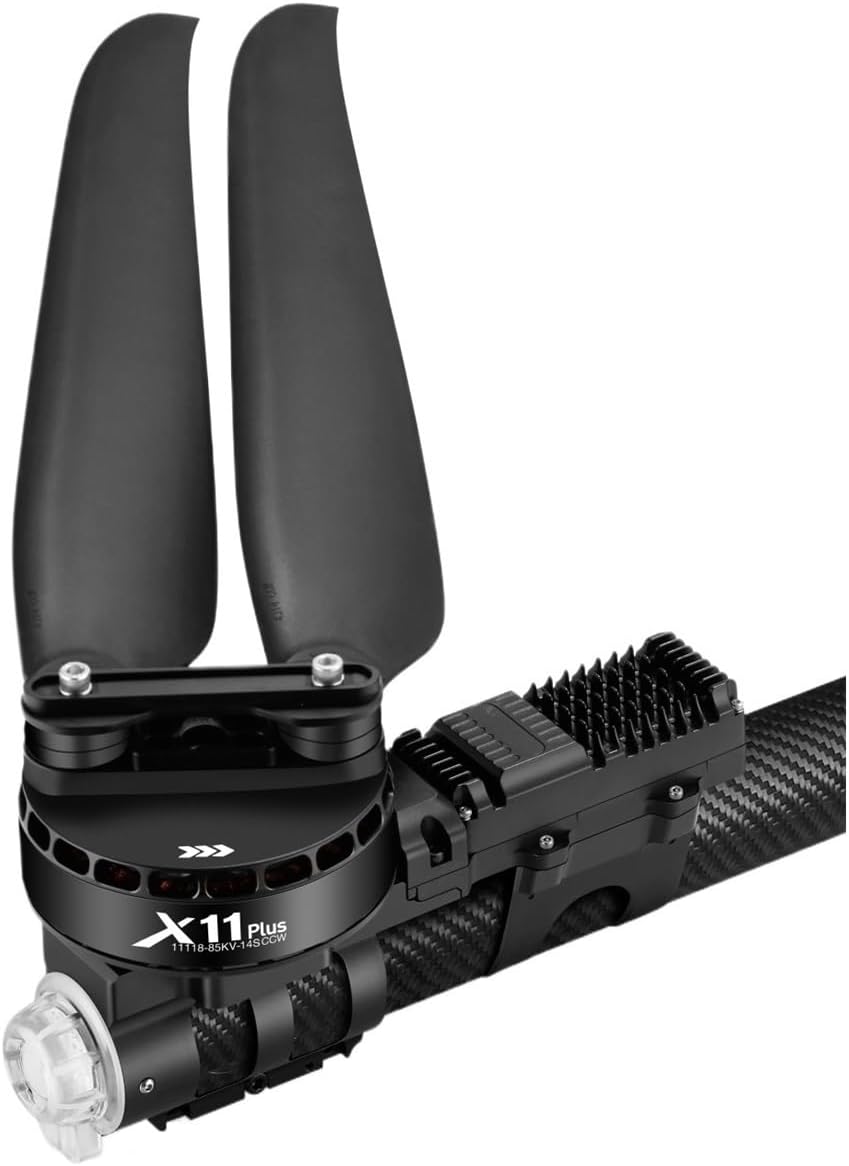

XRotor X11 Plus Power System 4314 Propellers 12-14S Motor Max Load 37kg Fit for Agricultural Spraying Drones
XRotor X11 Plus Power System 4314 Propellers 12-14S Motor Max Load 37kg Fit for Agricultural Spraying Drones
Product name: X11PLUS
Maximum pulling force: 37kg/axis 44V sea level
Recommended take-off : 15-18kg/axis (44V, sea level)
Machine : 2490g
Operating temperature: 0~50℃
Rated voltage: 85rpm/V
Stator size: 111*18mm
Power arm tube outer diameter: 30mm
Recommended lithium polymer battery: 12-14S (lithium polymer)
PWM input signal level: 3.3V/5V
Throttle signal frequency: 50-500Hz
Working pulse width: 1050-1950-us
Maximum input voltage; 61V
Maximum input current (short time): 150A
Propeller diameter × pitch: 43*14
Application: UAV
Commutation: brushless
Speed (RPM): 3402
Continuous current (A): 50A
Maximum pulling force: 37 kg/axis
Recommended pulling force: 15 kg-18 kg/rotor
Propeller: 4314
Diameter of propeller barrel: 50 mm
Total : 2490 g
Maximum output power: 8000 watts
Continuous power: 2500 watts
Battery clip/hook: 12-14 seconds
- Product adaptation: Adapted to drone power systems using 4314 propellers
- Performance parameters: Brushless motor, continuous current 50A, maximum pulling force 37kg/axis, adapted to 12-14S lithium polymer batteries
- Lightweight: Made of carbon fiber composite material, moderate weight and durable.
- Balanced: Improve flight stability and reduce vibration.
- Compatible: Install and fly, no additional debugging required.
-
